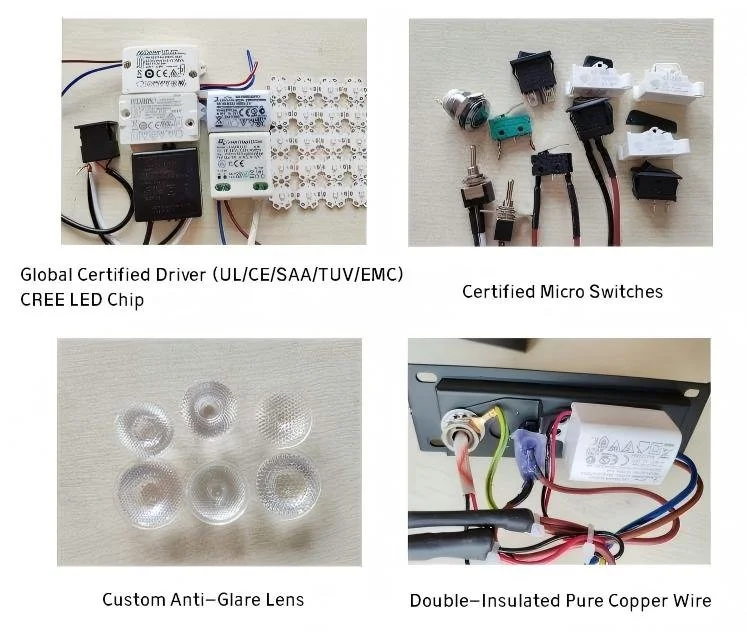

Electrical & Safety Components
Double Insulation Standard: No ground wire required. All metal friction points are protected by wax tubes to prevent wear.
Cable Protection: Heat-shrink tubing and cable ties used at wiring points for strain relief.
Certified Driver: High-performance driver with CE/UL/ROHS/EMC certifications.
Pure Copper Wiring: 0.75mm² international standard double-insulated wire (CE/UL certified).

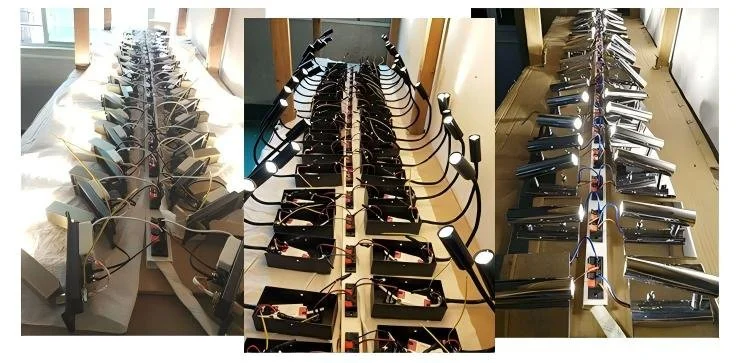

Quality Testing: 100% High Voltage Test performed before shipment.
Installation & Usage Guide
Safety First: Always switch off the power supply before installation.
Protection: Please wear gloves during installation to prevent fingerprints or injury.
Voltage Check: Ensure the voltage matches the rated AC100-240V.
Wall Condition: Do not install on wet cement or structurally weak/soft walls.
Cleaning: Clean with a dry cloth only. Do not use acid, alkali, or corrosive liquids.
Testing: Perform a light-up test before permanently fixing the unit to the wall.
Professional Install: Installation by a qualified electrician is recommended.
